The BigDog: 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18

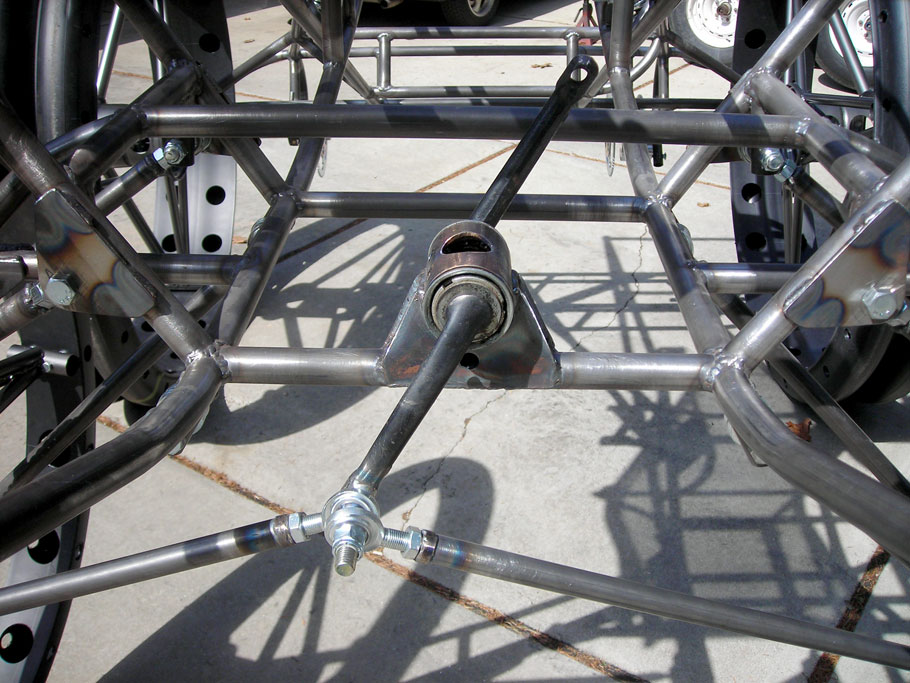

View From Top Right

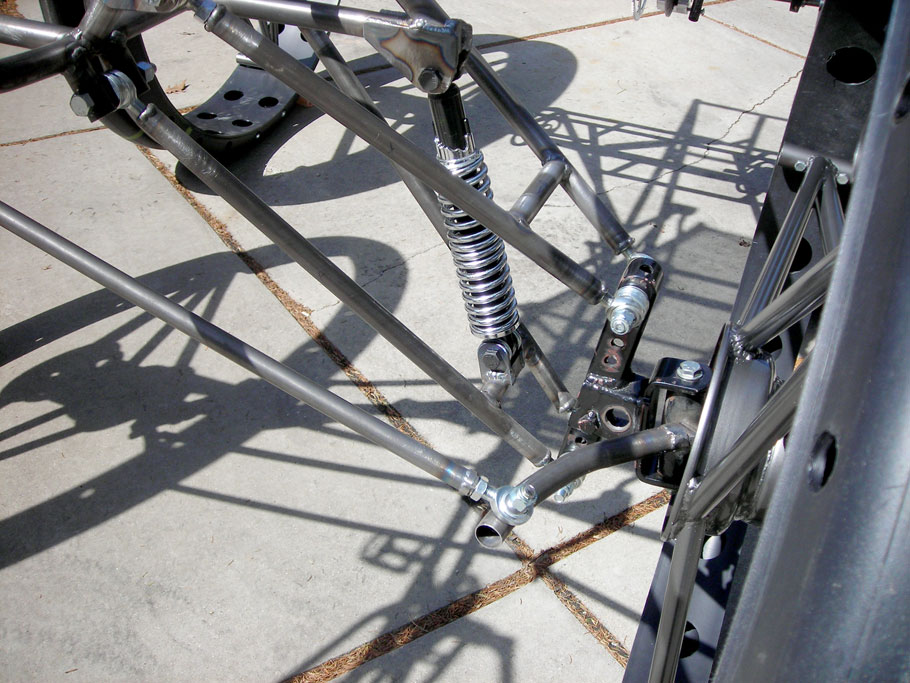

View From Top Left - April 10, 2010

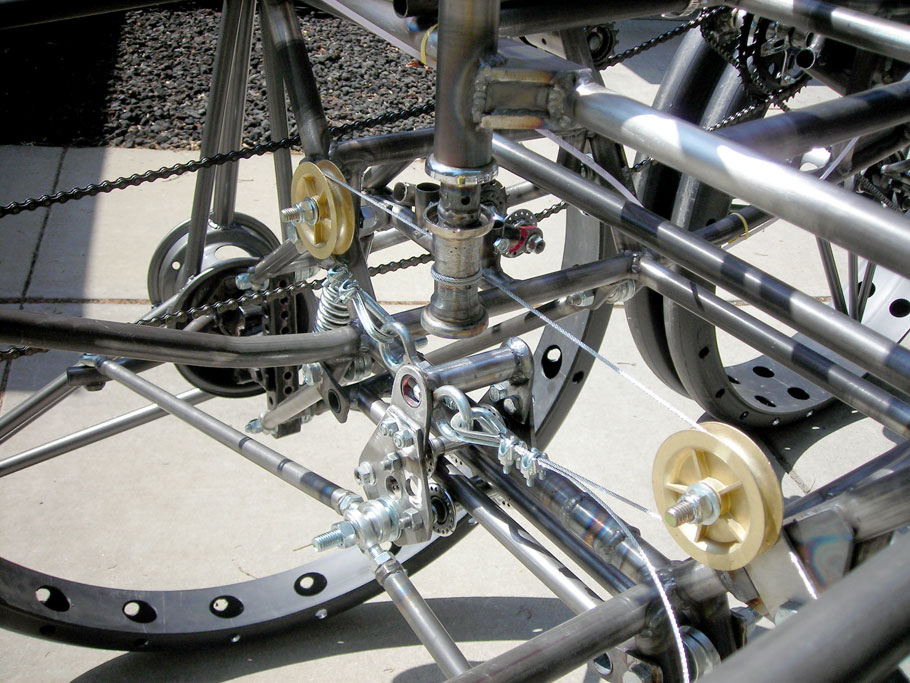

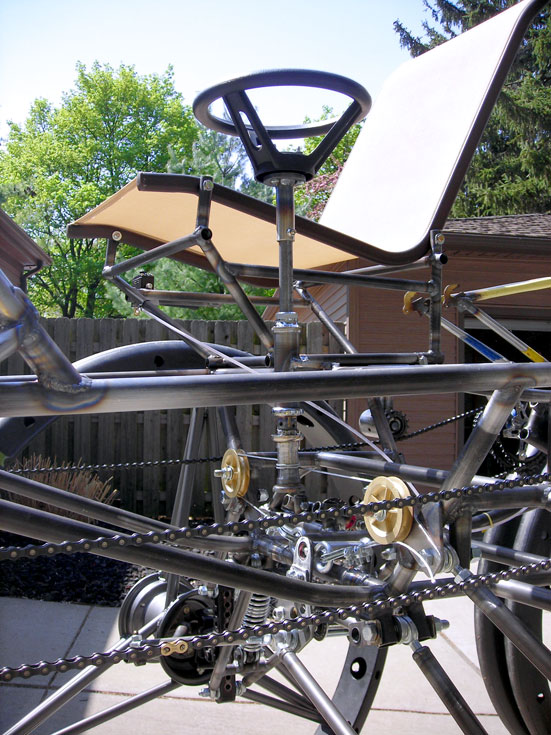

Pullys, Cable & Steering Wheel - April 17, 2010

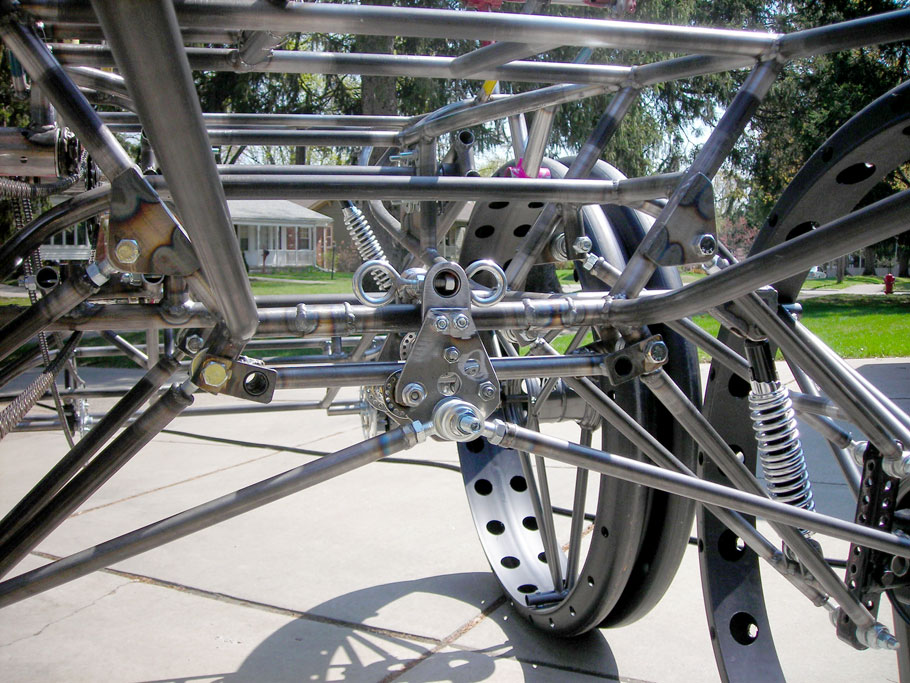

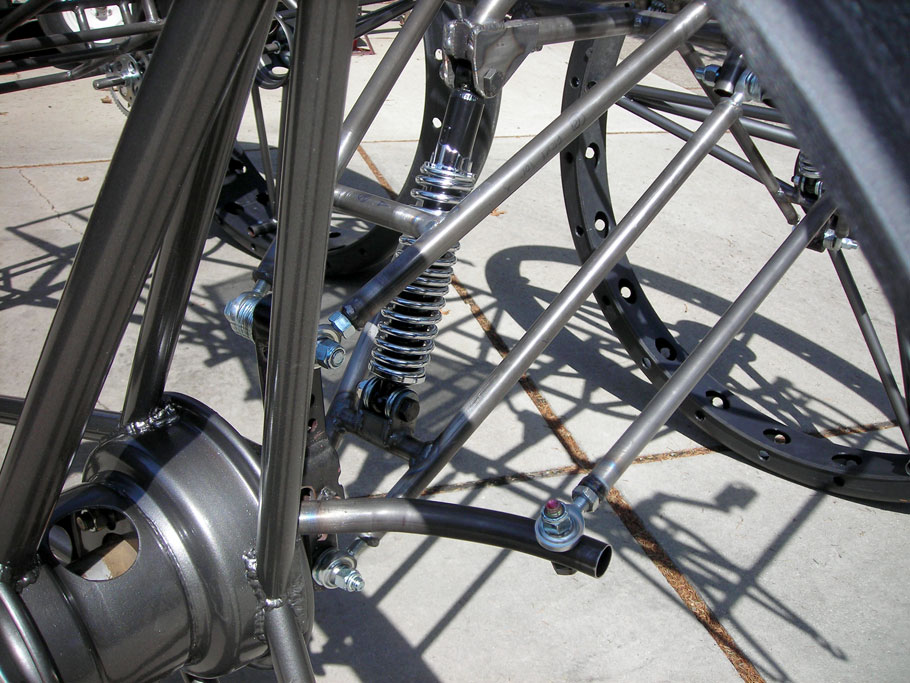

Revised Steering Details

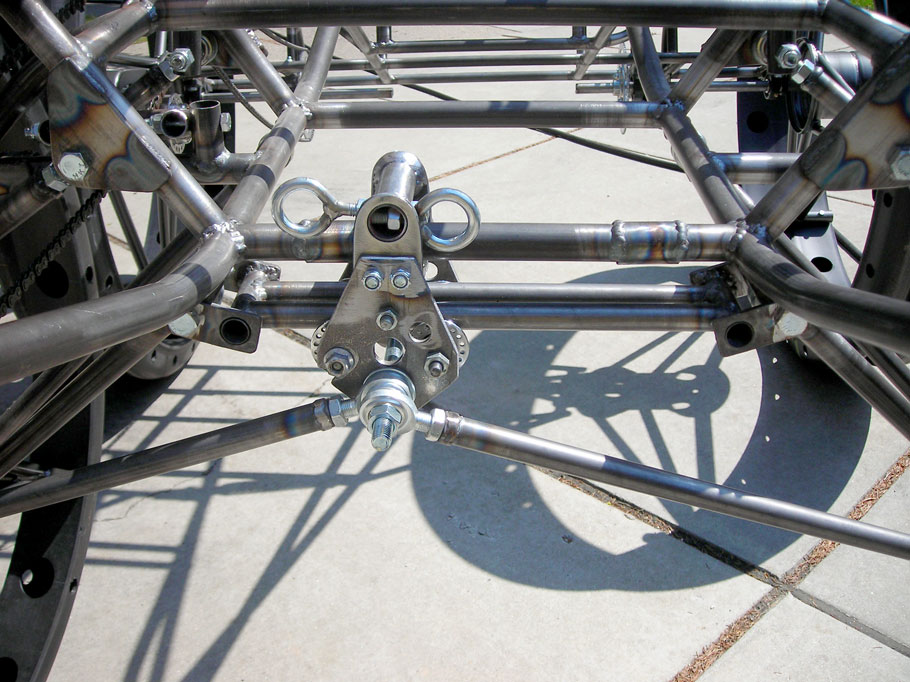

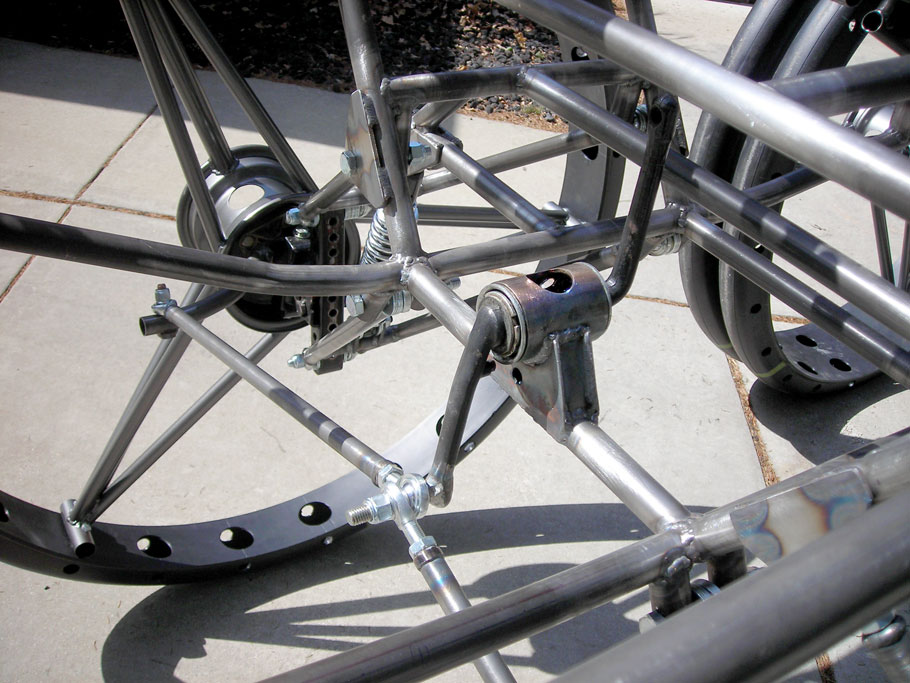

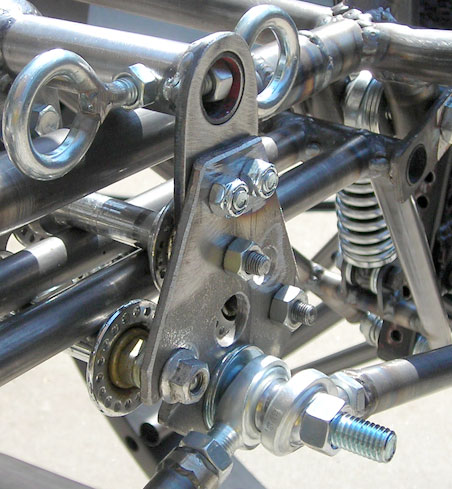

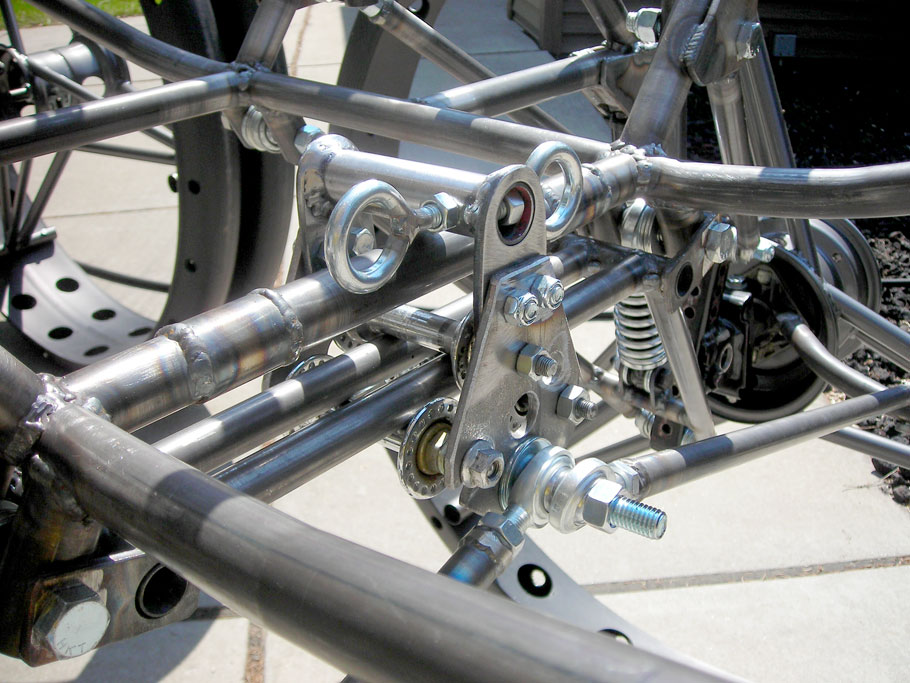

A little more complicated design but, the wheel alignment during sharper turns has improved enough to have made the re-work worth while. The lower a-arm attachment points provided a convenient place to mount a set of rails. A carrier was fabricated using three front bicycle wheel axles as rollers. The steering arms mount to the carrier and now travel back and forth across the rails in a straight path (verses the circular path the inner steering arm ends traveled in the earlier design).
